1/2" x 3" Hex Sleeve Anchor Zinc Plated, 25/Box

$13.76 per Box of 25
    Payment types
   Availability: In Stock / Ships Today



  • Customer Reviews
  • Multi Domain SSL
    Multi Domain SSL


Products Features
  • VARIETY OF HEAD STYLES HEX, ACORN, FLAT AND ROUND: Meets most application requirements with one style anchor; offers choices
  • 360 DEGREE EXPANSION: Provides consistent and reliable holding values in a wide range of base materials
  • PRE-ASSEMBLED AND READY TO INSTALL: No need to purchase bolts, nuts, and washers separately; convenient application process
  • ANCHOR SIZE IS BIT​ ​SIZE: Simple, fast and provides consistent tolerance for optimal results
  • AVAILABLE IN ZINC PLATED AND 304 STAINLESS STEEL: Anchor choices provide ​for both dry or wet environments; versatile application to meet environmental conditions
Products specifications
Bit Size 1/2"
Minimum Embedment 1-1/2"
Thread Type 3/8" - 16
2000 PSI Concrete - Pull-Out (lbs.) * 1676
2000 PSI Concrete - Shear (lbs.) * 3645
Type Male
Diameter 1/2"
Length 3"
Material Carbon Steel Zinc Plated
Environment Dry
Box Qty 25
Minimum Spacing 5"
Minimum Edge Distance 2-1/2"
Maximum Fixture Thickness 1-1/2"
Minimum Fixture Hole Diameter (In Place) 5/8"
Maximum Torque 18 - 26 ft./lbs.
Wrench Size For Nut 3/4"
Length Measurement Underneath nut and washer
Brand Name CONFAST®
Application Video

Installation Video
Installing a 1/2" x 3" (three inches) Hex Sleeve Anchor Zinc Plated
  1. Drill a 1/2" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 1-1/2" is met.
  3. The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 1/2" x 3" (three inches) Hex Sleeve Anchor Zinc Plated is 5/8".
  4. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  5. The 1/2" x 3" (three inches) Hex Sleeve Anchor Zinc Plated is manufactured and sold fully assembled with nut and washer. It is important that the nut is on the end of the threads to protect the threads when it is struck by a hammer during installation.
  6. Insert the anchor though the fixture hole and into the hole in the base material. A hammer will be required to pound the sleeve anchor into the base material until the washer and nut are tight against the fixture.
  7. Tighten the nut on the 1/2" x 3" (three inches) Hex Sleeve Anchor Zinc Plated until finger tight by turning clockwise.
  8. Using a 3/4" wrench, turn the nut 2 to 4 times until snug or until the proper torque value of 18 - 26 Ft./lbs. is reached.
  9. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Application Pictures

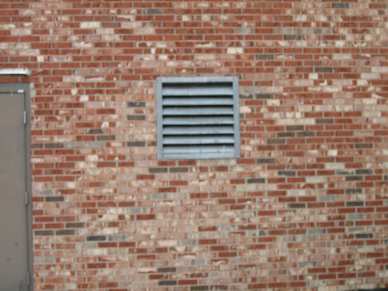

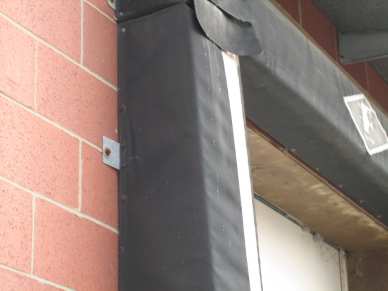

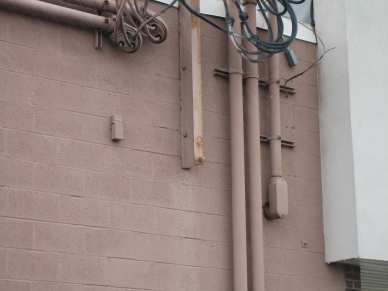

1/2" x 3" zinc plated hex head sleeve anchor - brick - dock pad 1/2" x 3" zinc plated hex head sleeve anchor - brick - vent 1/2" x 3" zinc plated hex head sleeve anchor - block - electric unistrut
Product Reviews

* The figures above indicate average ultimate tension and shear failure values. A safety factor of 4:1 or 25% of ultimate value is generally accepted as a safe working load. Reference should always be made to applicable codes.

* The bits are recommended by diameter and may not necessarily be the length needed for your application. Please make sure the usable length will work for your application. *
