ITW/Buildex®

3/16" x 1-1/4" Tapcon Flat Star Carbon Steel Blue Climaseal® Coated PF3-114, 100/Box

(No reviews yet) Write a Review
SKU:
CSF316114;T
UPC:
092097951501
MPN:
PF-3114
Availability:
In Stock, Ships Today!
$20.72

Description

Products Features
  • LOWER ​INSTALLATION ​TORQUE:  Fast ​easy ​installation; ​saves ​time
  • HIGHER ​HOLDING ​VALUES:  Higher ​quality ​installation; ​optimal ​holding strength
  • CLIMASEAL® ​COATING:  Provides ​long-​lasting ​rust ​resistance exterior
  • AMERICAN ​MADE:  A high-quality ​domestic ​product
Products specifications
Bit Size  5/32"
Box Qty  100
Minimum Embedment  1"
Thread Type  Threadform Technology™
Minimum Edge Distance  2-1/4"
Maximum Fixture Thickness  1/4"
Minimum Fixture Hole Diameter (In Place)  1/4"
Minimum Fixture Hole Diameter (Hole Spotted)  1/4"
Brand Name  ITW/Buildex
Driver Size  T-25
Minimum Spacing  3"
Thread Length  1-1/4"
2000 PSI Concrete - Pull-Out (lbs.) *  600
2000 PSI Concrete - Shear (lbs.) *  720
Length Measurement  Overall length including head
Diameter  3/16"
Length  1-1/4"
Material  Carbon Steel Blue Climaseal® Coated
Environment  Dry to Moist
Type  Male
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Application Video

Installation Video
Installing a 3/16" x 1-1/4" Flat Star Tapcon® Concrete Screw
  1. Drill a 5/32" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 1" is met.
  3. The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 3/16" x 1-1/4" Flat Star Tapcon® Concrete Screw is 1/4".
  4. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  5. Insert the point of the 3/16" x 1-1/4" Flat Star Tapcon® Concrete Screw into the hole. Make sure that the screw being installed will penetrate the base material a minimum of 1" but no deeper than 1-3/4".
  6. Using a T-25 bit tip for the anchor, turn the screw clockwise, applying slight pressure until the head of the screw is snug against the material being fastened.
  7. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Application Photos

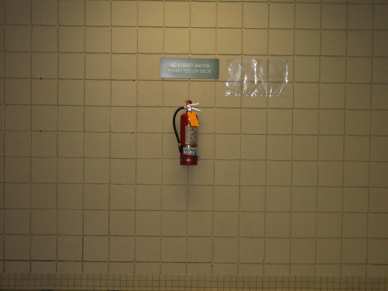

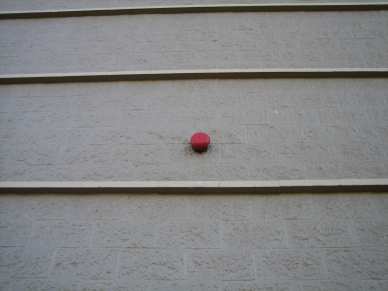

3/16" x 1-1/4" flat tapcon - block - fire alarm 3/16" x 1-1/4" flat tapcon - block - extinguisher for fire

Downloads

pdf Installation Document

pdfTechnical Document

View AllClose

Additional Information

Bit Size:
5/32"
Minimum Embedment:
1"
Thread Length:
1-1/4"
Environment:
Dry to Moist
Material:
Carbon Steel Blue Climaseal® Coated
Thread Type:
Threadform Technology™
2000 PSI Concrete - Pull-Out (lbs.) *:
600
2000 PSI Concrete - Shear (lbs.) *:
720
Type:
Male
Diameter:
3/16"
Length:
1-1/4"
Box Qty:
100
Minimum Spacing:
3"
Minimum Edge Distance:
2-1/4"
Maximum Fixture Thickness:
1/4"
Minimum Fixture Hole Diameter (In Place):
1/4"
Minimum Fixture Hole Diameter (Hole Spotted):
1/4"
Length Measurement:
Overall length including head
Driver Size:
T-25
Brand Name:
ITW/Buildex
