CONFAST®

3/8" x 6" Flat Phillips Sleeve Anchor Zinc Plated, 25/Box

(No reviews yet) Write a Review
SKU:
SAF386
UPC:
820274001431
Availability:
In Stock, Ships Today!
$30.20

Description

Products Features
  • VARIETY OF HEAD STYLES HEX, ACORN, FLAT AND ROUND:  Meets most application requirements with one style anchor; offers choices
  • 360 DEGREE EXPANSION:  Provides consistent and reliable holding values in a wide range of base materials
  • PRE-ASSEMBLED AND READY TO INSTALL:  No need to purchase bolts, nuts, and washers separately; convenient application process
  • ANCHOR SIZE IS BIT​ ​SIZE:  Simple, fast and provides consistent tolerance for optimal results
  • AVAILABLE IN ZINC PLATED AND 304 STAINLESS STEEL:  Anchor choices provide ​for both dry or wet environments; versatile application to meet environmental conditions
Products specifications
Bit Size 3/8"
Box Qty 50
Minimum Embedment 1-1/4"
Head Type Flat Countersunk
Thread Type 5/16" - 18
Minimum Edge Distance 1-7/8"
Maximum Fixture Thickness 4-3/4"
Minimum Fixture Hole Diameter (In Place) 1/2"
Brand Name CONFAST®
Minimum Spacing 3-3/4"
2000 PSI Concrete - Pull-Out (lbs.) * 1406
2000 PSI Concrete - Shear (lbs.) * 3082
Length Measurement Overall length including head
Diameter 3/8"
Length 6"
Material Carbon Steel Zinc Plated
Environment Dry
Type Male
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Application Video

Installation Video
Installing a 3/8" x 6" (six inches) Flat Phillips Sleeve Anchor Zinc Plated
  1. Drill a 3/8" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 1-1/4" is met.
  3. The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 3/8" x 6" (six inches) Flat Phillips Sleeve Anchor Zinc Plated is 1/2".
  4. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  5. The 3/8" x 6" (six inches) Flat Phillips Sleeve Anchor Zinc Plated is manufactured and sold fully assembled with nut and washer. It is important that the nut is on the end of the threads to protect the threads when it is struck by a hammer during installation.
  6. Insert the anchor though the fixture hole and into the hole in the base material. A hammer will be required to pound the sleeve anchor into the base material until the washer and nut are tight against the fixture.
  7. Tighten the nut on the 3/8" x 6" (six inches) Flat Phillips Sleeve Anchor Zinc Plated until finger tight by turning clockwise.
  8. Using a flat screwdriver, turn the nut 2 to 4 times until snug or until the proper torque value of 15 - 18 Ft./lbs. is reached.
  9. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Application Photos

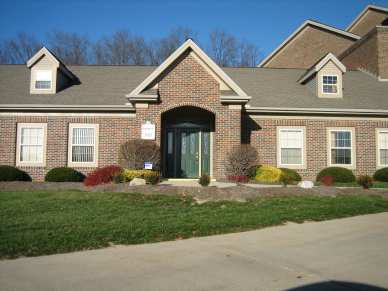

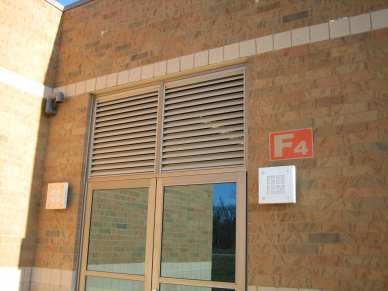

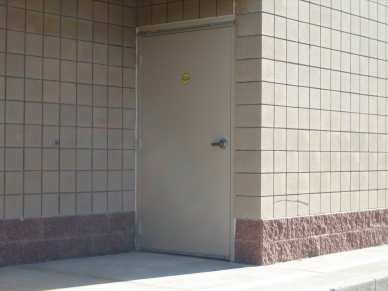

3/8" x 6" zinc plated flat head countersunk sleeve anchor - concrete -door frame 3/8" x 6" zinc plated flat head countersunk sleeve anchor - concrete - front door frame 3/8" x 6" zinc plated flat head countersunk sleeve anchor - block -man door
