CONFAST®

1/4" x 1-3/4" 316 Stainless Steel Wedge Anchor, 100/Box

(No reviews yet) Write a Review
SKU:
WAS-31614134
UPC:
820274002834
Availability:
In Stock, Ships Today!
$168.00
Frequently bought together:

Description

Products Features
  • MADE ​FROM ​HIGHEST ​GRADE ​316 ​STAINLESS STEEL:  Suitable ​for ​use ​in ​many ​caustic ​environments ​for superior ​rust ​resistance; ​lowered ​maintenance costs
  • ALL ​DIAMETERS ​AND ​LENGTHS:  Proper ​size ​anchor ​ensures ​highest ​degree ​of successful ​installation; ​wide ​range ​of choices
  • 316 ​STAINLESS ​STEEL ​NUTS ​&​ ​WASHERS:  Proper ​size ​and ​number ​assures ​speedy, complete ​installation
  • 316 ​STAINLESS ​STEEL ​CLIP ​- ​TANGED:  Tanged ​clip ​prevents ​anchor ​from ​spinning ​in ​hole during ​most ​installations
  • ANCHOR ​CAN ​BE ​INSTALLED ​THROUGH​ ​FIXTURE HOLE:  No ​hole ​spotting ​allows ​for ​faster, ​more ​accurate installations; ​provides ​convenience
Products specifications
Bit Size 1/4"
Box Qty 100
Minimum Embedment 1-1/8"
Wrench Size For Nut 7/16"
Primary Concrete only
Thread Type 1/4" - 20
Minimum Edge Distance 1-1/4"
Maximum Fixture Thickness 3/8"
Minimum Fixture Hole Diameter (In Place) 5/16"
Minimum Fixture Hole Diameter (Hole Spotted) 1/4"
Length ID Code
Brand Name CONFAST®
Minimum Spacing 2-1/2"
Maximum Torque 5 - 10 ft./lbs.
Thread Length 5/8"
2000 PSI Concrete - Pull-Out (lbs.) * 877
2000 PSI Concrete - Shear (lbs.) * 1082
Length Measurement End to End
Diameter 1/4"
Length 1-3/4"
Material 316 Stainless Steel
Environment Submerged/Chemicals
Type Male
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Application Video

Installation Video
Installing a 1/4" x 1-3/4" (three one six) 316 Stainless Steel Wedge Anchor
  1. Drill a 1/4" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 1-1/8" is met.
  3. The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 1/4" x 1-3/4" (three one six) 316 Stainless Steel Wedge Anchor is 5/16".
  4. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  5. Put the nut and washer on the 1/4" x 1-3/4" (three one six) 316 Stainless Steel Wedge Anchor, making sure the nut is on the last threads; this will protect the threads from damage when the wedge anchor is hammered into the hole and into the concrete.
  6. Insert the anchor through the hole in the fixture and into the hole in the base material.
  7. This should be a very tight fit. Then use a hammer to complete the installation until the nut and washer are tight against the fixture. It is important that the threads go below the surface of either the base material or the fixture.
  8. Turn the nut clockwise on the anchor until finger tight.
  9. Using a 7/16" wrench, turn the nut 3 to 4 times until snug or until the proper torque value of 5 - 10 ft./lbs. is reached.
  10. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Application Photos

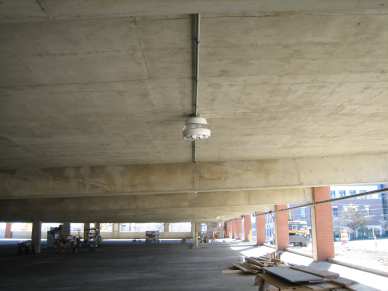

1/4" x 1-3/4" 316 stainless steel wedge anchor - concrete - parking garage light
View AllClose

Additional Information

Bit Size:
1/4"
Minimum Embedment:
1-1/8"
Thread Length:
5/8"
Primary:
Concrete only
Environment:
Submerged/Chemicals
Thread Type:
1/4" - 20
2000 PSI Concrete - Pull-Out (lbs.) *:
877
2000 PSI Concrete - Shear (lbs.) *:
1082
Type:
Male
Diameter:
1/4"
Length:
1-3/4"
Material:
316 Stainless Steel
Box Qty:
100
Minimum Spacing:
2-1/2"
Minimum Edge Distance:
1-1/4"
Maximum Fixture Thickness:
3/8"
Minimum Fixture Hole Diameter (In Place):
5/16"
Minimum Fixture Hole Diameter (Hole Spotted):
1/4"
Length ID Code:
A
Maximum Torque:
5 - 10 ft./lbs.
Wrench Size For Nut:
7/16"
Length Measurement:
End to End
Brand Name:
CONFAST
