1/4" x 1-3/8" 304 Stainless Steel Acorn Sleeve Anchor, 100/Box

$93.00 per Box of 100
    Payment types
   Availability: In Stock / Ships Today
  Questions?

SKU: SAAS14138
  MFG: CONFAST®



  • Customer Reviews
  • EV MDC SSL
    EV MDC SSL


Products Features
  • VARIETY OF HEAD STYLES HEX, ACORN, FLAT AND ROUND: Meets most application requirements with one style anchor; offers choices
  • 360 DEGREE EXPANSION: Provides consistent and reliable holding values in a wide range of base materials
  • PRE-ASSEMBLED AND READY TO INSTALL: No need to purchase bolts, nuts, and washers separately; convenient application process
  • ANCHOR SIZE IS BIT​ ​SIZE: Simple, fast and provides consistent tolerance for optimal results
  • AVAILABLE IN ZINC PLATED AND 304 STAINLESS STEEL: Anchor choices provide ​for both dry or wet environments; versatile application to meet environmental conditions
Products specifications
Bit Size 1/4"
Minimum Embedment 1"
Thread Type 3/16" - 24
2000 PSI Concrete - Pull-Out (lbs.) * 682
2000 PSI Concrete - Shear (lbs.) * 840
Type Male
Diameter 1/4"
Length 1-3/8"
Material 304 Stainless Steel
Environment Wet
Box Qty 100
Minimum Spacing 2-1/2"
Minimum Edge Distance 1-1/4"
Maximum Fixture Thickness 3/8"
Minimum Fixture Hole Diameter (In Place) 5/16"
Maximum Torque 2 - 6 ft./lbs.
Wrench Size For Nut 7/16"
Head Type Acorn/Open
Length Measurement Underneath nut and washer
Brand Name CONFAST®
Installation Video
Installing a 1/4" x 1-3/8" (three zero four) 304 Stainless Steel Acorn Sleeve Anchor
  1. Drill a 1/4" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 1" is met.
  3. The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 1/4" x 1-3/8" (three zero four) 304 Stainless Steel Acorn Sleeve Anchor is 5/16".
  4. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  5. Put the nut and washer on the 1/4" x 1-3/8" (three zero four) 304 Stainless Steel Acorn Sleeve Anchor, making sure the nut is on the last threads; this will protect the threads from damage when the wedge anchor is hammered into the hole and into the concrete.
  6. Insert the anchor through the hole in the fixture and into the hole in the base material until the nut and washer are tight against the fixture.
  7. Using a properly sized hammer for the 1/4" x 1-3/8" (three zero four) 304 Stainless Steel Acorn Sleeve Anchor, set the pin with a number of square and sharp strikes to the head of the pin until the pin is flush with the top of the anchor. There is no need to torque the nut to set the anchor since the anchor is set with the correct set pin.
  8. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Application Pictures

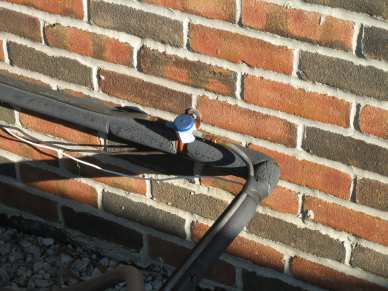

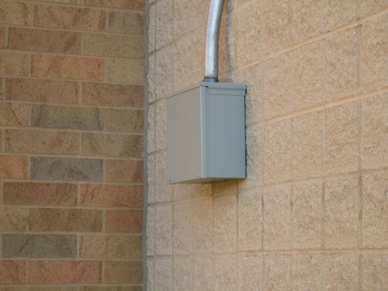

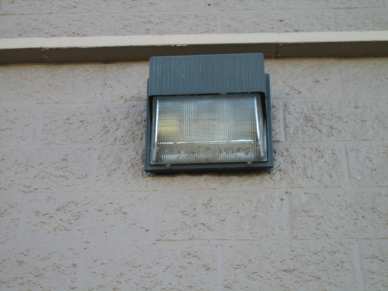

1/4" x 1-3/8" acorn head stainless steel sleeve anchor - brick - pipe 1/4" x 1-3/8" acorn head stainless steel sleeve anchor - block - electric box 1/4" x 1-3/8" acorn head stainless steel sleeve anchor - block - light fixture
Product Reviews

* The figures above indicate average ultimate tension and shear failure values. A safety factor of 4:1 or 25% of ultimate value is generally accepted as a safe working load. Reference should always be made to applicable codes.



* The bits are recommended by diameter and may not necessarily be the length needed for your application. Please make sure the usable length will work for your application. *
