3/16" x 3-3/4" Tapcon Flat Phillips Carbon Steel Blue Climaseal® Coated PF3-334, 100/Box

(No reviews yet) Write a Review
SKU:
TCF316334
UPC:
092097951556
MPN:
PF-3334
Availability:
In Stock, Ships Today!
$35.80
Frequently bought together:

Description

Products Features
  • LOWER ​INSTALLATION ​TORQUE:  Fast ​easy ​installation; ​saves ​time
  • HIGHER ​HOLDING ​VALUES:  Higher ​quality ​installation; ​optimal ​holding strength
  • CLIMASEAL® ​COATING:  Provides ​long-​lasting ​rust ​resistance exterior
  • AMERICAN ​MADE:  A high-quality ​domestic ​product
Products specifications
Bit Size 5/32"
Box Qty 100
Minimum Embedment 1"
Thread Type Threadform Technology™
Minimum Edge Distance 2-1/4"
Maximum Fixture Thickness 2-3/4"
Minimum Fixture Hole Diameter (In Place) 1/4"
Minimum Fixture Hole Diameter (Hole Spotted) 1/4"
Brand Name ITW/Buildex
Driver Size #2
Minimum Spacing 3"
Thread Length 1-3/4"
2000 PSI Concrete - Pull-Out (lbs.) * 600
2000 PSI Concrete - Shear (lbs.) * 720
Length Measurement Overall length including head
Diameter 3/16"
Length 3-3/4"
Material Carbon Steel Blue Climaseal® Coated
Environment Dry to Moist
Type Male
Application Video

Installation Video
Installing a 3/16" x 3-3/4" Flat Phillips Tapcon® Concrete Screw
  1. Drill a 5/32" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 1" is met.
  3. The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 3/16" x 3-3/4" Flat Phillips Tapcon® Concrete Screw is 1/4".
  4. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  5. Insert the point of the 3/16" x 3-3/4" Flat Phillips Tapcon® Concrete Screw into the hole. Make sure that the screw being installed will penetrate the base material a minimum of 1" but no deeper than 1-3/4".
  6. Using a #2 bit tip Phillips bit tip for the anchor , turn the screw clockwise, applying slight pressure until the head of the screw is snug against the material being fastened.
  7. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Application Photos

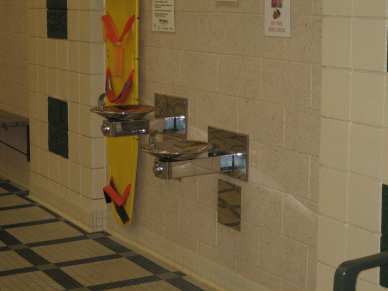

3/16" x 3-3/4" flat tapcon - block -  drinking fountain
