ITW/Buildex®
3/16" x 4" Tapcon Flat Phillips Carbon Steel Blue Climaseal® Coated PF3-400, 100/Box
(No reviews yet)
Write a Review
- SKU:
- CSF3164;T
- UPC:
- 092097951563
- MPN:
- PF3-400
- Availability:
- Discontinued by the manufacturer, see page for alternatives.
Description
Products Features
- LOWER INSTALLATION TORQUE: Fast easy installation; saves time
- HIGHER HOLDING VALUES: Higher quality installation; optimal holding strength
- CLIMASEAL® COATING: Provides long-lasting rust resistance exterior
- AMERICAN MADE: A high-quality domestic product
Products specifications
| Bit Size | 5/32" |
| Box Qty | 100 |
| Minimum Embedment | 1" |
| Thread Type | Threadform Technology™ |
| Minimum Edge Distance | 2-1/4" |
| Maximum Fixture Thickness | 3" |
| Minimum Fixture Hole Diameter (In Place) | 1/4" |
| Minimum Fixture Hole Diameter (Hole Spotted) | 1/4" |
| Brand Name | ITW/Buildex |
| Driver Size | #2 |
| Minimum Spacing | 3" |
| Thread Length | 1-3/4" |
| 2000 PSI Concrete - Pull-Out (lbs.) * | 600 |
| 2000 PSI Concrete - Shear (lbs.) * | 720 |
| Length Measurement | Overall length including head |
| Diameter | 3/16" |
| Length | 4" |
| Material | Carbon Steel Blue Climaseal® Coated |
| Environment | Dry to Moist |
| Type | Male |
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Installation Video
Installing a 3/16" x 4" (four inches) Flat Phillips Tapcon® Concrete Screw - Drill a 5/32" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
- Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 1" is met.
- The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 3/16" x 4" (four inches) Flat Phillips Tapcon® Concrete Screw is 1/4".
- Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
- Insert the point of the 3/16" x 4" (four inches) Flat Phillips Tapcon® Concrete Screw into the hole. Make sure that the screw being installed will penetrate the base material a minimum of 1" but no deeper than 1-3/4".
- Using a #2 bit tip Phillips bit tip for the anchor , turn the screw clockwise, applying slight pressure until the head of the screw is snug against the material being fastened.
- Always use proper personal protective equipment per manufacturer's and OSHA instructions.

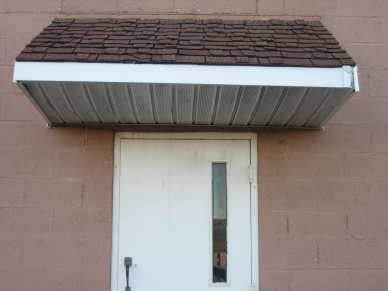

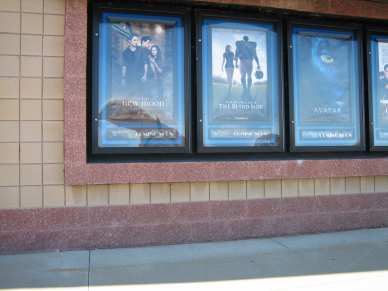

Application Photos
Installation DocumentAdditional Information
Bit Size: |
5/32" |
Minimum Embedment: |
1" |
Thread Length: |
1-3/4" |
Environment: |
Dry to Moist |
Material: |
Carbon Steel Blue Climaseal® Coated |
Thread Type: |
Threadform Technology™ |
2000 PSI Concrete - Pull-Out (lbs.) *: |
600 |
2000 PSI Concrete - Shear (lbs.) *: |
720 |
Type: |
Male |
Diameter: |
3/16" |
Length: |
4" |
Box Qty: |
100 |
Minimum Spacing: |
3" |
Minimum Edge Distance: |
2-1/4" |
Maximum Fixture Thickness: |
3" |
Minimum Fixture Hole Diameter (In Place): |
1/4" |
Minimum Fixture Hole Diameter (Hole Spotted): |
1/4" |
Length Measurement: |
Overall length including head |
Driver Size: |
#2 |
Brand Name: |
ITW/Buildex |
