CONFAST®

3/8" Lag Shield Anchor Long, 50/Box

(No reviews yet) Write a Review
SKU:
LSL38
UPC:
820274000694
Availability:
In Stock, Ships Today!
$65.84

Description

Products Features
  • EASY TO​ ​INSTALL:  Fast, secure installation
  • EASY TO​ ​REMOVE:  Simply turn clockwise and back the screw out of the hole
  • ONE PIECE DESIGN:  No nuts or washers the anchor comes complete
Products specifications
Bit Size 5/8"
Box Qty 50
Minimum Embedment 2-1/2"
Thread Type 3/8" - 7
Minimum Edge Distance 3-1/8"
Minimum Fixture Hole Diameter (In Place) 3/4"
Minimum Fixture Hole Diameter (Hole Spotted) 3/8"
Inside Anchor Diameter-Bolt Diameter 3/8"
Outside Anchor Diameter 5/8"
Internal Thread Length 1-1/2"
Brand Name CONFAST®
Maximum Torque 10 ft./lbs.
Bolt Length Fixture Thickness + Embedment Depth
2000 PSI Concrete - Pull-Out (lbs.) * 555
Length Measurement End to End
Diameter 3/8"
Length 2-1/2"
Material Zamac
Environment Wet
Type Female
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Installation Video
Installing a 3/8" Lag Shield Anchor Long
  1. Drill a 5/8" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. The depth of the hole can be deeper or equal to the minimum embedment depth of 2-1/2" which is equal to the length of the anchor .
  3. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  4. Insert the anchor in the hole with the closed end of the lag shield inserted first.
  5. Place the fixture over the 3/8" Lag Shield Anchor Long, insert a 3/8" diameter lag screw through the fixture and into the 3/8" Lag Shield Anchor Long.
  6. Use a wrench to turn the lag screw clockwise until tight or maximum torque value 10 ft./lbs. is reached.
  7. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Product Video

Application Photos

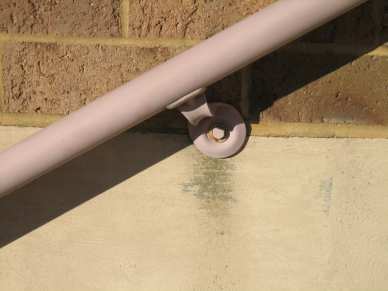

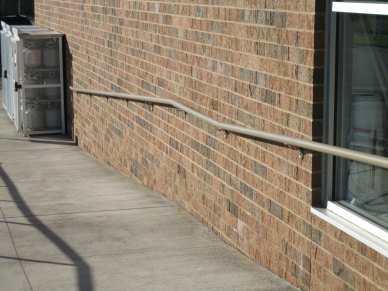

3/8" lag shield long - brick - railing 3/8" lag shield long - brick - railing bracket 3/8" lag shield long - block - rain gutter 3/8" lag shield long - block - safety railing
View AllClose

Additional Information

Bit Size:
5/8"
Minimum Embedment:
2-1/2"
Thread Type:
3/8" - 7
Material:
Zamac
Environment:
Wet
2000 PSI Concrete - Pull-Out (lbs.) *:
555
Type:
Female
Diameter:
3/8"
Length:
2-1/2"
Box Qty:
50
Minimum Edge Distance:
3-1/8"
Minimum Fixture Hole Diameter (In Place):
3/4"
Minimum Fixture Hole Diameter (Hole Spotted):
3/8"
Maximum Torque:
10 ft./lbs.
Inside Anchor Diameter-Bolt Diameter:
3/8"
Outside Anchor Diameter:
5/8"
Internal Thread Length:
1-1/2"
Length Measurement:
End to End
Bolt Length:
Fixture Thickness + Embedment Depth
Brand Name:
CONFAST
