CONFAST®
5/8" x 2-1/4" 304 Stainless Steel Hex Sleeve Anchor, 10/Box
(No reviews yet)
Write a Review
- SKU:
- SAHS58214
- UPC:
- 820274001752
- Availability:
- In Stock, Ships Today!
Description
Products Features
- VARIETY OF HEAD STYLES HEX, ACORN, FLAT AND ROUND: Meets most application requirements with one style anchor; offers choices
- 360 DEGREE EXPANSION: Provides consistent and reliable holding values in a wide range of base materials
- PRE-ASSEMBLED AND READY TO INSTALL: No need to purchase bolts, nuts, and washers separately; convenient application process
- ANCHOR SIZE IS BIT SIZE: Simple, fast and provides consistent tolerance for optimal results
- AVAILABLE IN ZINC PLATED AND 304 STAINLESS STEEL: Anchor choices provide for both dry or wet environments; versatile application to meet environmental conditions
Products specifications
| Bit Size | 5/8" |
| Box Qty | 10 |
| Minimum Embedment | 2" |
| Wrench Size For Nut | 15/16" |
| Thread Type | 1/2" - 13 |
| Minimum Edge Distance | 3-1/8" |
| Maximum Fixture Thickness | 1/4" |
| Minimum Fixture Hole Diameter (In Place) | 3/4" |
| Brand Name | CONFAST® |
| Maximum Torque | 30 - 40 ft./lbs. |
| 2000 PSI Concrete - Pull-Out (lbs.) * | 3652 |
| 2000 PSI Concrete - Shear (lbs.) * | 4218 |
| Length Measurement | Underneath nut and washer |
| Diameter | 5/8" |
| Length | 2-1/4" |
| Material | 304 Stainless Steel |
| Environment | Wet |
| Type | Male |
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Application Video
Installation Video
Installing a 5/8" x 2-1/4" (three zero four) 304 Stainless Steel Hex Sleeve Anchor - Drill a 5/8" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
- Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 2" is met.
- The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 5/8" x 2-1/4" (three zero four) 304 Stainless Steel Hex Sleeve Anchor is 3/4".
- Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
- The 5/8" x 2-1/4" (three zero four) 304 Stainless Steel Hex Sleeve Anchor is manufactured and sold fully assembled with nut and washer. It is important that the nut is on the end of the threads to protect the threads when it is struck by a hammer during installation.
- Insert the anchor though the fixture hole and into the hole in the base material. A hammer will be required to pound the sleeve anchor into the base material until the washer and nut are tight against the fixture.
- Tighten the nut on the 5/8" x 2-1/4" (three zero four) 304 Stainless Steel Hex Sleeve Anchor until finger tight by turning clockwise.
- Using a 15/16" wrench, turn the nut 2 to 4 times until snug or until the proper torque value of 30 - 40 Ft./lbs. is reached.
- Always use proper personal protective equipment per manufacturer's and OSHA instructions.

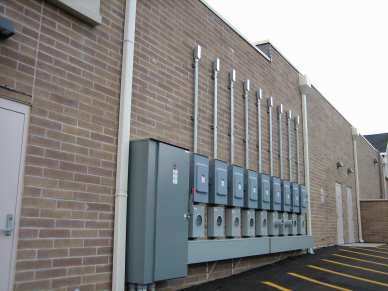

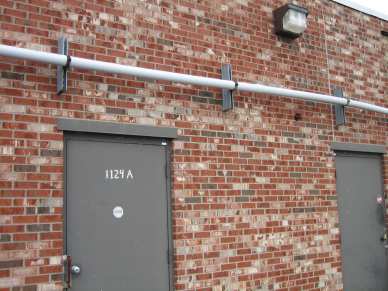

Application Photos
Additional Information
Bit Size: |
5/8" |
Minimum Embedment: |
2" |
Thread Type: |
1/2" - 13 |
Material: |
304 Stainless Steel |
Environment: |
Wet |
2000 PSI Concrete - Pull-Out (lbs.) *: |
3652 |
2000 PSI Concrete - Shear (lbs.) *: |
4218 |
Type: |
Male |
Diameter: |
5/8" |
Length: |
2-1/4" |
Box Qty: |
10 |
Minimum Edge Distance: |
3-1/8" |
Maximum Fixture Thickness: |
1/4" |
Minimum Fixture Hole Diameter (In Place): |
3/4" |
Wrench Size For Nut: |
15/16" |
Length Measurement: |
Underneath nut and washer |
Brand Name: |
CONFAST |
