304 Stainless Steel Wedge Anchors

  • Customer Reviews
  • EV MDC SSL
    EV MDC SSL

  • Concrete Fastenings System, Inc. BBB Business Review

Purchase CONFAST® brand 304 stainless steel wedge anchors direct and sidestep higher retail prices. Same day shipping is our standard policy.

Picture for category 304 Stainless
Filter by attributes
  •    Length
Display per page
Part # Size Box Qty Bit Size Shipping Price / Box # of Boxes Add
Picture of 1/4" x 1-3/4" Stainless Steel Wedge Anchor, 100/Box WAS14134 100 per box 1/4" Ships Today $88.00
Picture of 1/4" x 2-1/4" Stainless Steel Wedge Anchor, 100/Box WAS14214 100 per box 1/4" Ships Today $93.00
Picture of 1/4" x 3" Stainless Steel Wedge Anchor, 100/Box WAS143 100 per box 1/4" Ships Today $99.00
Picture of 1/4" x 3-1/4" Stainless Steel Wedge Anchor, 100/Box WAS14314 100 per box 1/4" Ships Today $104.00
Picture of 5/16" x 2-3/4" Stainless Steel Wedge Anchor, 100/Box WAS516234 100 per box 5/16" Ships Today $149.00
Picture of 5/16" x 3-1/2" Stainless Steel Wedge Anchor, 100/Box WAS516312 100 per box 5/16" Ships Today $155.00
Picture of 3/8" x 2-1/4" Stainless Steel Wedge Anchor, 50/Box WAS38214 50 per box 3/8" Ships Today $78.50
Picture of 3/8" x 2-3/4" Stainless Steel Wedge Anchor, 50/Box WAS38234 50 per box 3/8" Ships Today $86.00
Picture of 3/8" x 3" Stainless Steel Wedge Anchor, 50/Box WAS383 50 per box 3/8" Ships Today $92.50
Picture of 3/8" x 3-1/2" Stainless Steel Wedge Anchor, 50/Box WAS38312 50 per box 3/8" Ships Today $97.50
Picture of 3/8" x 3-3/4" Stainless Steel Wedge Anchor, 50/Box WAS38334 50 per box 3/8" Ships Today $103.00
Picture of 3/8" x 5" Stainless Steel Wedge Anchor, 50/Box WAS385 50 per box 3/8" Ships Today $125.50

More Information:

  • Designed for fastening into solid concrete
  • Used for outdoor, wet environments
  • Each box packaged with 304 stainless steel nuts and washers
  • Diameter of hole is the same diameter as anchor being installed
  • Can be installed directly through the hole in the fixture
  • Each anchor stamped with length ID
  • After loading anchor can be post expanded
  • Expansion clip is tanged, single piece made from 304 stainless steel
  • Does not require bottom of hole for expansion
  • Superior and consistent holding values over any type of mechanical concrete anchor

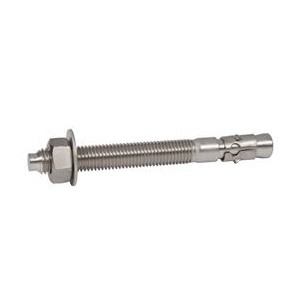

CONFAST® 304 Stainless Steel Wedge Anchor


USES
  • The CONFAST® 304 Stainless Steel Wedge Anchor is used in outdoor areas where water is present.
  • 304 stainless steel wedge anchors can be used in applications where the wedge anchor would come in contact with moisture, such as fence posts, mailboxes and light fixtures.
  • The CONFAST® 304 Stainless Steel Wedge Anchor comes complete with 304 stainless steel nuts and washers ready to be installed.
INSTALLATION
  • It is important that the CONFAST® 304 Stainless Steel Wedge Anchor never be used in brick or block base material because they are designed for use only in solid concrete.
  • A hole that is the same diameter as the diameter of anchor being installed must be drilled in the concrete for the CONFAST® 304 Stainless Steel Wedge Anchor to be inserted. A carbide tipped bit must be used in a hammer drill to insure the correctly matched tolerance hole.
  • When drilling into concrete for the installation of wedge anchor, a hammer drill must be used and set in the hammer and rotation mode using a carbide tip bit that meets ANSI standards.
HOLDING STRENGTH
  • Holding values for the CONFAST® 304 Stainless Steel Wedge Anchor rise with the increased diameter and the length of embedment into the concrete.
  • Each diameter of CONFAST® 304 Stainless Steel Wedge Anchor has a minimum depth of embedment requirement to meet minimum holding values. Embedment depth less than minimum are prohibited because the holding values may inadequate or nonexistent.
SIZES
  • Available in light duty diameters of 1/4” to heavy-duty diameters of 1-1/4”, the CONFAST® 304 Stainless Steel Wedge Anchor has a wide variety of applications. The lengths vary depending on the diameter and are available from 1-3/4” to 12”.
  • The 304 stainless steel CONFAST® wedge anchor comes in different lengths to accommodate different thickness of material being fastened to the concrete. The minimum length of anchor to be used for any application can be determined by adding the material thickness to the minimum embedment for the diameter being installed plus the thickness of the nut and washer.
Filter by attributes
  •    Length

CONFAST® 304 Stainless Steel Wedge Anchor

USES
• The CONFAST® 304 Stainless Steel Wedge Anchor is used in outdoor areas where water is present.
• 304 stainless steel wedge anchors can be used in applications where the wedge anchor would come in contact with moisture, such as fence posts, mailboxes and light fixtures.
• The CONFAST® 304 Stainless Steel Wedge Anchor comes complete with 304 stainless steel nuts and washers ready to be installed.

INSTALLATION
• It is important that the CONFAST® 304 Stainless Steel Wedge Anchor never be used in brick or block base material because they are designed for use only in solid concrete.
• A hole that is the same diameter as the diameter of anchor being installed must be drilled in the concrete for the CONFAST® 304 Stainless Steel Wedge Anchor to be inserted. A carbide tipped bit must be used in a hammer drill to insure the correctly matched tolerance hole.
• When drilling into concrete for the installation of wedge anchor, a hammer drill must be used and set in the hammer and rotation mode using a carbide tip bit that meets ANSI standards.

HOLDING STRENGTH
• Holding values for the CONFAST® 304 Stainless Steel Wedge Anchor rise with the increased diameter and the length of embedment into the concrete.
• Each diameter of CONFAST® 304 Stainless Steel Wedge Anchor has a minimum depth of embedment requirement to meet minimum holding values. Embedment depth less than minimum are prohibited because the holding values may inadequate or nonexistent.

SIZES
• Available in light duty diameters of 1/4” to heavy-duty diameters of 1-1/4”, the CONFAST® 304 Stainless Steel Wedge Anchor has a wide variety of applications. The lengths vary depending on the diameter and are available from 1-3/4” to 12”.
• The 304 stainless steel CONFAST® wedge anchor comes in different lengths to accommodate different thickness of material being fastened to the concrete. The minimum length of anchor to be used for any application can be determined by adding the material thickness to the minimum embedment for the diameter being installed plus the thickness of the nut and washer.
