316 Stainless Steel Wedge Anchors

  • Customer Reviews
  • EV MDC SSL
    EV MDC SSL

  • Concrete Fastenings System, Inc. BBB Business Review

Purchase CONFAST® 316 stainless steel wedge anchors direct from CONFAST® to avoid higher retail prices. Ships the same day it is received. Each diameter and length is in stock.

Picture for category 316 Stainless
Filter by attributes
  •    Length
Display per page
Part # Size Box Qty Bit Size Shipping Price / Box # of Boxes Add
Picture of 1/4" x 1-3/4" 316 Stainless Steel Wedge Anchor, 100/Box WAS-31614134 100 per box 1/4" Ships Today $168.00
Picture of 1/4" x 2-1/4" 316 Stainless Steel Wedge Anchor, 100/Box WAS-31614214 100 per box 1/4" Ships Today $174.00
Picture of 1/4" x 3-1/4" 316 Stainless Steel Wedge Anchor, 100/Box WAS-31614314 100 per box 1/4" Ships Today $240.00
Picture of 3/8" x 2-1/4" 316 Stainless Steel Wedge Anchor, 50/Box WAS-31638214 50 per box 3/8" Ships Today $139.00
Picture of 3/8" x 2-3/4" 316 Stainless Steel Wedge Anchor, 50/Box WAS-31638234 50 per box 3/8" Ships Today $149.50
Picture of 3/8" x 3" 316 Stainless Steel Wedge Anchor, 50/Box WAS-316383 50 per box 3/8" Ships Today $155.50
Picture of 3/8" x 3-1/2" 316 Stainless Steel Wedge Anchor, 50/Box WAS-31638312 50 per box 3/8" Ships Today $166.00
Picture of 3/8" x 3-3/4" 316 Stainless Steel Wedge Anchor, 50/Box WAS-31638334 50 per box 3/8" Ships Today $189.50
Picture of 3/8" x 5" 316 Stainless Steel Wedge Anchor, 50/Box WAS-316385 50 per box 3/8" Ships Today $220.50
Picture of 1/2" x 2-3/4" 316 Stainless Steel Wedge Anchor, 25/Box WAS-31612234 25 per box 1/2" Ships Today $144.25
Picture of 1/2" x 3-3/4" 316 Stainless Steel Wedge Anchor, 25/Box WAS-31612334 25 per box 1/2" Ships Today $172.50
Picture of 1/2" x 4-1/4" 316 Stainless Steel Wedge Anchor, 25/Box WAS-31612414 25 per box 1/2" Ships Today $185.75

More Information:

  • For fastening to solid concrete
  • Used for outdoor, wet, submerged, chemical environments
  • Packaged with (three one six) 316 stainless steel nuts and washers
  • Hole size is equal to anchor size
  • Installation possible through fixture hole
  • Length Identification stamped on the end of each stud
  • Anchor can be expanded after initial expansion
  • One piece (three one six) 316 stainless steel expansion clip with tangs
  • Threaded end is chamfered to protect the threads
  • Bottom of hole not required for setting anchor
  • Most consistent holding values of any type of mechanical type anchor

Filter by attributes
  •    Length

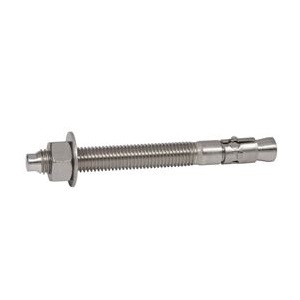

CONFAST® 316 Stainless Steel Wedge Anchor

USES
• The CONFAST® (three one six) 316 Stainless Steel Wedge Anchor is designed for use in atmospheres where water and chemicals are present.
• (three one six) 316 stainless steel wedge anchor can be used areas that range from in and around swimming pools to sluice gates and aeration tanks at waste water treatment facilities
• Each box of CONFAST® (three one six) 316 Stainless Steel Wedge Anchor is packaged with the proper number and size of (three one six) 316 stainless steel nuts and washers.

INSTALLATION
• The CONFAST® (three one six) 316 Stainless Steel Wedge Anchor can be used only in solid concrete, and should never be used in base materials such as brick or block.
• The diameter of hole to be drilled in the concrete for the CONFAST® (three one six) 316 Stainless Steel Wedge Anchor is equal to the diameter of the anchor being installed. For example, a 1/2” hole requires the use of a 1/2” diameter carbide bit.
• The carbide bit must meet ANSI standards and must be used in a hammer drill set in the hammer and rotation mode.

HOLDING STRENGTH
• The holding values in concrete of the CONFAST® (three one six) 316 Stainless Steel Wedge Anchor is determined by the diameter of the anchor and the depth of embedment.
• To meet obtain minimum holding values, each diameter has a minimum embedment depth into which the CONFAST® (three one six) 316 Stainless Steel Wedge Anchor must be installed.

SIZES
• The CONFAST® (three one six) 316 Stainless Steel Wedge Anchor comes in a wide range of diameters ranging from 1/4” to 1-1/4” and in lengths ranging from 1-3/4” to 12”.
• To determine the length of (three one six) 316 stainless steel CONFAST® wedge anchor required for a specific job, add the thickness of the material being fastened to the minimum embedment depth for the diameter of anchor being used plus the thickness of the nut and washer. The sum provides the minimum anchor length for the application.
