CONFAST®

1/4" Lag Shield Anchor Long, 100/Box

(No reviews yet) Write a Review
SKU:
LSL14
UPC:
820274000687
Availability:
In Stock / Ships Today
$61.08

Description

Products Features
  • EASY TO​ ​INSTALL:  Fast, secure installation
  • EASY TO​ ​REMOVE:  Simply turn clockwise and back the screw out of the hole
  • ONE PIECE DESIGN:  No nuts or washers the anchor comes complete
Products specifications
Bit Size 1/2"
Box Qty 100
Minimum Embedment 1-1/2"
Thread Type 1/4" - 10
Minimum Edge Distance 2-1/2"
Minimum Fixture Hole Diameter (In Place) 9/16"
Minimum Fixture Hole Diameter (Hole Spotted) 1/4"
Inside Anchor Diameter-Bolt Diameter 1/4"
Outside Anchor Diameter 1/2"
Internal Thread Length 1"
Brand Name CONFAST®
Minimum Spacing 5"
Maximum Torque 5 ft./lbs.
Bolt Length Fixture Thickness + Embedment Depth
2000 PSI Concrete - Pull-Out (lbs.) * 225
Length Measurement End to End
Diameter 1/4"
Length 1-1/2"
Material Zamac
Environment Wet
Type Female
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Installation Video
Installing a 1/4" Lag Shield Anchor Long
  1. Drill a 1/2" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. The depth of the hole can be deeper or equal to the minimum embedment depth of 1-1/2" which is equal to the length of the anchor .
  3. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  4. Insert the anchor in the hole with the closed end of the lag shield inserted first.
  5. Place the fixture over the 1/4" Lag Shield Anchor Long, insert a 1/4" diameter lag screw through the fixture and into the 1/4" Lag Shield Anchor Long.
  6. Use a wrench to turn the lag screw clockwise until tight or maximum torque value 5 ft./lbs. is reached.
  7. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Product Video

Application Photos

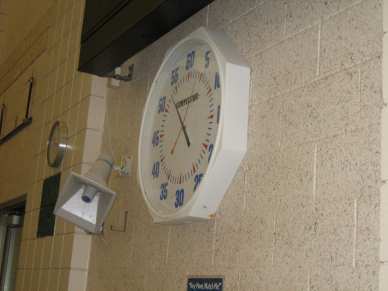

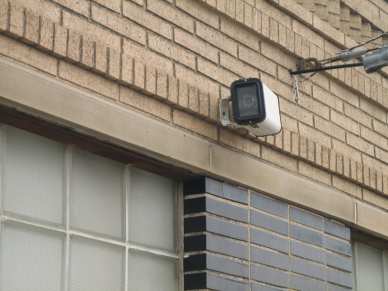

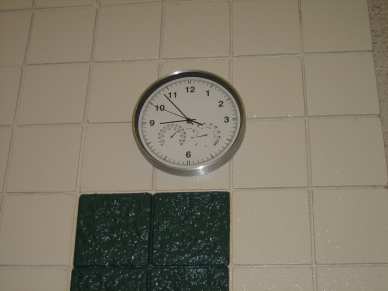

1/4" lag shield long - brick - camera 1/4" lag shield long - block - clock 1/4" lag shield long - block - clock
