CONFAST®

3/8" Double Expansion Anchor, 30/Box

(No reviews yet) Write a Review
SKU:
DE38
UPC:
820274000342
Availability:
In Stock, Ships Today!
$48.46

Description

Products Features
  • CORROSION RESISTANT​ ​BODY:  Anchor body can be used in atmospheres where moisture may be present
  • EXPANDS THE WHOLE LENGTH OF ANCHOR:  Performs well in base material of questionable strength
  • INTERNAL THREADS:  Allows for unbolting​ ​for non-permanent fastening applications
  • NATIONAL COARSE THREADS:  Bolts that are required are the most common type available and easily found for purchase
  • EACH DIAMETER COMES IN ONE LENGTH:  Selection is simple process of picking a diameter and then choosing the anchor
Products specifications
Bit Size  3/4"
Box Qty  30
Minimum Embedment  2"
Thread Type  3/8" - 16
Minimum Edge Distance  3-3/4"
Minimum Fixture Hole Diameter (In Place)  7/8"
Minimum Fixture Hole Diameter (Hole Spotted)  3/8"
Inside Anchor Diameter-Bolt Diameter  3/8"
Outside Anchor Diameter  3/4"
Brand Name  CONFAST®
Minimum Spacing  7-1/2"
Maximum Torque  10 ft./lbs.
Bolt Length  Fixture Thickness + Embedment Depth
2000 PSI Concrete - Pull-Out (lbs.) *  1023
Length Measurement  End to End
Diameter  3/8"
Length  2"
Material  Zamac
Environment  Moist
Type  Female
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Installation Video
Installing a 3/8" Double Expansion Anchor
  1. Drill a 3/4" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. The depth of the hole can be deeper or equal to the minimum embedment depth of 2" which is equal to the length of the anchor .
  3. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  4. Insert the anchor with its threaded end first into the hole.
  5. Place the fixture over the 3/8" Double Expansion Anchor, insert a 3/8" diameter bolt through the fixture and into the 3/8" Double Expansion Anchor.
  6. Use a wrench to turn the anchor clockwise until tight or maximum torque value 10 ft. lbs. is reached.
  7. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Application Photos

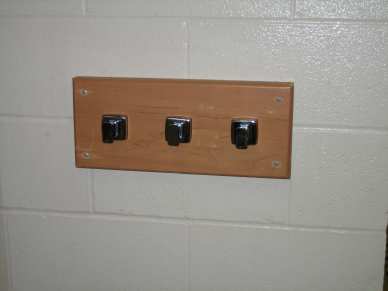

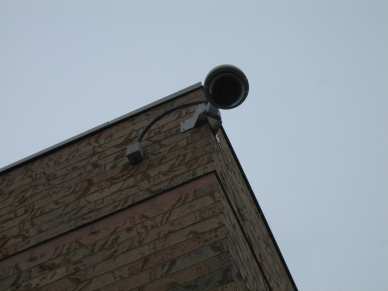

3/8" double expansion anchor - brick - surveillance camera 3/8" double expansion anchor - block - towel rack
