CONFAST®

3/8" Drop-In Anchor Zinc Plated, 100/Box

(No reviews yet) Write a Review
SKU:
DI38
UPC:
820274000403
Availability:
In Stock, Ships Today!
$32.00
Frequently bought together:

Description

Products Features
  • SMOOTH WALL DESIGN:  Provides contact along​ ​length of expansion area; provides consistent holding values; aesthetic appeal
  • INTERNAL NATIONAL COARSE THREADS:  Common threads create easier ​selection of threaded rod or bolt
  • IDEAL FOR FLUSH MOUNTING: Nothing​ ​protrudes above surface of the concrete once anchor is properly installed
  • MOST​ ​CONSISTENT​ ​HOLDING VALUES:  Can be used in solid concrete as an internally threaded concrete fastener
  • SLOTTED BODY IS PRECISION MATCHED TO TAPERED EXPANSION PLUG:  Ensures that the anchor is uniformly expanded ​to provide consistent holding​ ​value
Products specifications
Bit Size 1/2"
Minimum Embedment 1-9/16"
Primary Concrete only
Thread Type 3/8" - 16
Minimum Edge Distance 2-1/2"
Minimum Fixture Hole Diameter (In Place) 9/16"
Minimum Fixture Hole Diameter (Hole Spotted) 3/8"
Inside Anchor Diameter-Bolt Diameter 3/8"
Outside Anchor Diameter 1/2"
Internal Thread Length 5/8"
Brand Name CONFAST®
Minimum Spacing 5"
Maximum Torque 10 ft./lbs.
Bolt Length Fixture Thickness + Embedment Depth
Thread Length 5/8"
2000 PSI Concrete - Pull-Out (lbs.) * 1170
Length Measurement End to End
Box Qty 100
Diameter 3/8"
Length 1-9/16"
Material Carbon Steel Zinc Plated
Environment Dry
Type Female
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Application Video

Installation Video
Installing a 3/8" Drop-In Anchor Zinc Plated
  1. Drill a 1/2" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. The depth of the hole can be deeper or equal to the minimum embedment depth of 1-9/16" which is equal to the length of the anchor .
  3. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  4. Insert the anchor into the hole with the open threaded end facing up.
  5. Take the correct 3/8" Drop-In Anchor Zinc Plated setting tool and insert the smaller diameter end into the threaded portion of the 3/8" Drop-In Anchor Zinc Plated.
  6. Strike the end of the setting tool with a hammer until the anchor is fully set.
  7. The 3/8" Drop-In Anchor Zinc Plated is now set. A 3/8" diameter threaded rod or a bolt can be inserted into it with a maximum torque of 10 ft. lbs.
  8. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Application Photos

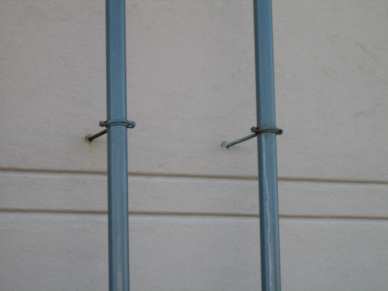

3/8" drop in anchor - concrete - gas line
