CONFAST®
3/8" Single Expansion Anchor, 50/Box
- SKU:
- SE38
- UPC:
- 820274001943
- Availability:
- In Stock, Ships Today!
Description
Products Features
- PRE-ASSEMBLED: Ready to install; convenient; no setting tools required
- READILY ACCEPTS MACHINE BOLTS: Any coarse threaded bolt can be used; flexible use
- INTERNAL THREADS: Bolt can be removed easily
- BOLT EXPANDS ANCHOR: No need for setting tools; fast and easy to install
- CAN BE INSTALLED IN CONCRETE, BRICK OR BLOCK: Versatile anchor choice for most masonry applications and environments
Products specifications
| Bit Size | 5/8" |
| Box Qty | 50 |
| Minimum Embedment | 1-1/2" |
| Thread Type | 3/8" - 16 |
| Minimum Edge Distance | 3-1/8" |
| Minimum Fixture Hole Diameter (In Place) | 3/4" |
| Minimum Fixture Hole Diameter (Hole Spotted) | 3/8" |
| Inside Anchor Diameter-Bolt Diameter | 3/8" |
| Outside Anchor Diameter | 5/8" |
| Internal Thread Length | 5/16" |
| Brand Name | CONFAST® |
| Maximum Torque | 10 ft./lbs. |
| Bolt Length | Fixture Thickness + Embedment Depth |
| 2000 PSI Concrete - Pull-Out (lbs.) * | 870 |
| Length Measurement | End to End |
| Diameter | 3/8" |
| Length | 1-1/2" |
| Material | Zamac |
| Environment | Moist |
| Type | Female |
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Installation Video
Installing a 3/8" Single Expansion Anchor - Drill a 5/8" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
- The depth of the hole can be deeper or equal to the minimum embedment depth of 1-1/2" which is equal to the length of the anchor .
- Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
- Insert the anchor with its threaded end first into the hole.
- Place the fixture over the 3/8" Single Expansion Anchor, insert a 3/8" diameter bolt through the fixture and into the 3/8" Single Expansion Anchor.
- Use a wrench to turn the anchor clockwise until tight or maximum torque value 10 ft. lbs. is reached.
- Always use proper personal protective equipment per manufacturer's and OSHA instructions.
Product Video

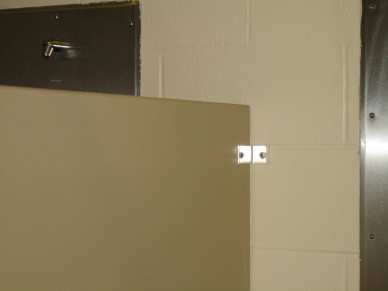

Application Photos
Additional Information
Bit Size: |
5/8" |
Minimum Embedment: |
1-1/2" |
Thread Type: |
3/8" - 16 |
Material: |
Zamac |
Environment: |
Moist |
2000 PSI Concrete - Pull-Out (lbs.) *: |
870 |
Type: |
Female |
Diameter: |
3/8" |
Length: |
1-1/2" |
Box Qty: |
50 |
Minimum Edge Distance: |
3-1/8" |
Minimum Fixture Hole Diameter (In Place): |
3/4" |
Minimum Fixture Hole Diameter (Hole Spotted): |
3/8" |
Inside Anchor Diameter-Bolt Diameter: |
3/8" |
Outside Anchor Diameter: |
5/8" |
Internal Thread Length: |
5/16" |
Length Measurement: |
End to End |
Bolt Length: |
Fixture Thickness + Embedment Depth |
Brand Name: |
CONFAST |
