American Made ThunderStud®

3/8" x 3" Zinc Plated U.S. Made ThunderStud Anchor, 100/Box

(No reviews yet) Write a Review
SKU:
WA383;T
UPC:
820274901083
MPN:
TS383
Availability:
In Stock, Ships Today!
$190.71

Description

Products Features
  • MADE IN AMERICA:   Assures top quality and meets most Made in America requirements
  • PATENTED UNIVERSAL CLIP:   Anchor does not spin in the hole which makes each fastening faster and more secure
  • PARTIAL THREADS:   Assures proper anchor length is used to meet minimum embedment depths
  • LENGTH I. D. STAMPED ON EACH ANCHOR:   Provides for a fast easy inspection of embedment depth
Products specifications
Bit Size 3/8"
Box Qty 100
Minimum Embedment 1-1/2"
Wrench Size For Nut 9/16"
Primary  Concrete only
Thread Type 3/8" - 16
Minimum Edge Distance 1-7/8"
Maximum Fixture Thickness 3/4"
Minimum Fixture Hole Diameter (In Place) 1/2"
Minimum Fixture Hole Diameter (Hole Spotted) 3/8"
Length ID Code  D
Brand Name  ThunderStud
Minimum Spacing 3-3/4"
Maximum Torque 25 - 30 ft./lbs.
Country  American Made
Thread Length 1-1/4"
2000 PSI Concrete - Pull-Out (lbs.) * 1631
2000 PSI Concrete - Shear (lbs.) * 4318
Length Measurement  End to End
Diameter 3/8"
Length 3"
Material  Carbon Steel Zinc Plated
Environment  Dry
Type  Male
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Application Video

Installation Video
Installing a 3/8" x 3" (three inches) Zinc Plated ThunderStud Wedge Anchor
  1. Drill a 3/8" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 1-1/2" is met.
  3. The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 3/8" x 3" (three inches) Zinc Plated ThunderStud Wedge Anchor is 1/2".
  4. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  5. Put the nut and washer on the 3/8" x 3" (three inches) Zinc Plated ThunderStud Wedge Anchor, making sure the nut is on the last threads; this will protect the threads from damage when the wedge anchor is hammered into the hole and into the concrete.
  6. Insert the anchor through the hole in the fixture and into the hole in the base material.
  7. This should be a very tight fit. Then use a hammer to complete the installation until the nut and washer are tight against the fixture. It is important that the threads go below the surface of either the base material or the fixture.
  8. Turn the nut clockwise on the anchor until finger tight.
  9. Using a 9/16" wrench, turn the nut 3 to 4 times until snug or until the proper torque value of 25 - 30 ft./lbs. is reached.
  10. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Application Photos

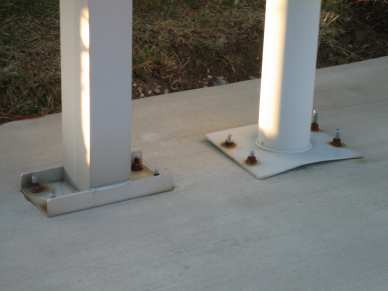

3/8" x 3" zinc plated thunderstud - concrete - metal plate
