CONFAST®
5/8" Lag Shield Anchor Long, 25/Box
- SKU:
- LSL58
- UPC:
- 820274000717
- Availability:
- In Stock, Ships Today!
Description
Products Features
- EASY TO INSTALL: Fast, secure installation
- EASY TO REMOVE: Simply turn clockwise and back the screw out of the hole
- ONE PIECE DESIGN: No nuts or washers the anchor comes complete
Products specifications
| Bit Size | 7/8" |
| Box Qty | 25 |
| Minimum Embedment | 3-1/2" |
| Thread Type | 5/8" - 5 |
| Minimum Edge Distance | 4-3/8" |
| Minimum Fixture Hole Diameter (In Place) | 1" |
| Minimum Fixture Hole Diameter (Hole Spotted) | 5/8" |
| Inside Anchor Diameter-Bolt Diameter | 5/8" |
| Outside Anchor Diameter | 7/8" |
| Internal Thread Length | 2-1/4" |
| Brand Name | CONFAST® |
| Minimum Spacing | 8-3/4" |
| Bolt Length | Fixture Thickness + Embedment Depth |
| 2000 PSI Concrete - Pull-Out (lbs.) * | 1297 |
| Length Measurement | End to End |
| Diameter | 5/8" |
| Length | 3-1/2" |
| Material | Zamac |
| Environment | Wet |
| Type | Female |
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Installation Video
Installing a 5/8" Lag Shield Anchor Long - Drill a 7/8" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
- The depth of the hole can be deeper or equal to the minimum embedment depth of 3-1/2" which is equal to the length of the anchor .
- Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
- Insert the anchor in the hole with the closed end of the lag shield inserted first.
- Place the fixture over the 5/8" Lag Shield Anchor Long, insert a 5/8" diameter lag screw through the fixture and into the 5/8" Lag Shield Anchor Long.
- Use a wrench to turn the lag screw clockwise until tight or maximum torque value 30ft./lbs. is reached.
- Always use proper personal protective equipment per manufacturer's and OSHA instructions.
Product Video

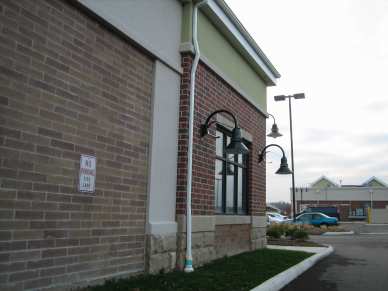

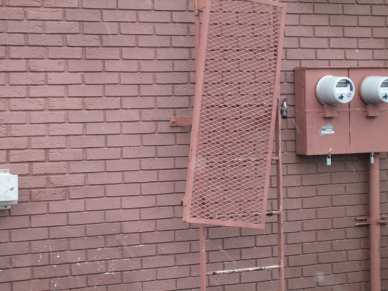

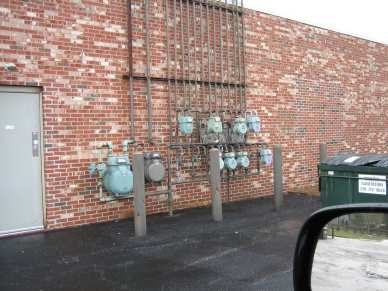

Application Photos
Additional Information
Bit Size: |
7/8" |
Minimum Embedment: |
3-1/2" |
Thread Type: |
5/8" - 5 |
Material: |
Zamac |
Environment: |
Wet |
2000 PSI Concrete - Pull-Out (lbs.) *: |
1297 |
Type: |
Female |
Diameter: |
5/8" |
Length: |
3-1/2" |
Box Qty: |
25 |
Minimum Spacing: |
8-3/4" |
Minimum Edge Distance: |
4-3/8" |
Minimum Fixture Hole Diameter (In Place): |
1" |
Minimum Fixture Hole Diameter (Hole Spotted): |
5/8" |
Inside Anchor Diameter-Bolt Diameter: |
5/8" |
Outside Anchor Diameter: |
7/8" |
Internal Thread Length: |
2-1/4" |
Length Measurement: |
End to End |
Bolt Length: |
Fixture Thickness + Embedment Depth |
Brand Name: |
CONFAST |
