5/8" Single Expansion Anchor, 25/Box

(No reviews yet) Write a Review
SKU:
SE58
UPC:
820274001967
Availability:
In Stock, Ships Today!
$72.96

Description

Products Features
  • PRE-ASSEMBLED:  Ready to install; convenient; no setting​ ​tools required
  • READILY ACCEPTS MACHINE BOLTS:  Any coarse threaded bolt can be used; flexible use
  • INTERNAL THREADS:  Bolt can be removed easily
  • BOLT​ ​EXPANDS ANCHOR:  No need for setting​ ​tools; fast and easy to install
  • CAN BE INSTALLED IN CONCRETE, BRICK OR BLOCK:  Versatile anchor choice for most masonry applications and environments
Products specifications
Bit Size 1"
Box Qty 25
Minimum Embedment 2-5/8"
Minimum Edge Distance 5"
Minimum Fixture Hole Diameter (In Place) 1-1/8"
Minimum Fixture Hole Diameter (Hole Spotted) 5/8"
Inside Anchor Diameter-Bolt Diameter 5/8"
Outside Anchor Diameter 1"
Internal Thread Length 5/8"
Brand Name CONFAST®
Minimum Spacing 10"
Maximum Torque 30 ft./lbs.
Bolt Length Fixture Thickness + Embedment Depth
2000 PSI Concrete - Pull-Out (lbs.) * 1672
Length Measurement End to End
Diameter 5/8"
Length 2-5/8"
Material Zamac
Environment Moist
Type Female
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Installation Video
Installing a 5/8" Single Expansion Anchor
  1. Drill a 1" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. The depth of the hole can be deeper or equal to the minimum embedment depth of 2-5/8" which is equal to the length of the anchor .
  3. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  4. Insert the anchor with its threaded end first into the hole.
  5. Place the fixture over the 5/8" Single Expansion Anchor, insert a 5/8" diameter bolt through the fixture and into the 5/8" Single Expansion Anchor.
  6. Use a wrench to turn the anchor clockwise until tight or maximum torque value 30 ft. lbs. is reached.
  7. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Product Video

Application Photos

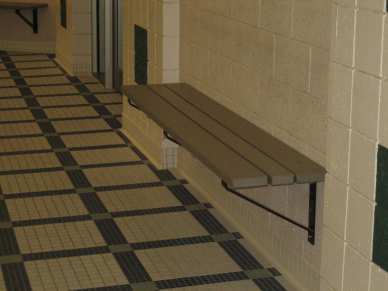

5/8" single expansion anchor - block - bench
