Simpson Strong-Tie

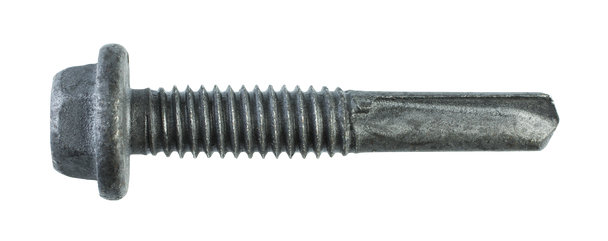

Simpson Strong-Drive® XM MEDIUM-HEAD METAL Screw - #12 x 1-1/4" 5/16 Hex (2000/Box)
(No reviews yet)
Write a Review
- SKU:
- QDXMQ114B1224-2K
- UPC:
- 707392216643
- Availability:
- In Stock, Ships Today!
Frequently bought together:
Description
- 5/16-in. hex drive — replacement driver bit BITHEXR516-134 (not included)
- 1/2-in. dia. hex washer head is ideal for narrow-channel steel decking
- # 5 drill point
- Quik Guard® coating for use in pressure-treated lumber and provides a level of corrosion resistance that is equivalent to hot-dip galvanization (ASTM A153, Class D) in some exposures
- Machine threads
- Length: 1-1/4 in.
- Quantity: 2,000
Products specifications
| Box Qty | 2000 |
| Diameter | #12 |
| Length | 1-1/4" |
| Material | Quik Guard® Coating |
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
The information on this page is intended for preliminary guidance only. For complete safety and to verify accurate information, please consult the (PDF linked below) to obtain the manufacturer’s values when selecting the anchors for your project.
"Strong-Drive metal screws are load tested and code listed, allowing you to get the maximum load values for installation. Comparison testing shows Strong-Drive XM Medium-Head Metal screws are stronger than many alternative fastener types in 33 ksi and 50 ksi steel decking."
Head Diameter: 0.480 inches
Fastener Product Information, page 112
Product Information (on Simpson Website)
California Prop 65 WARNING! Cancer -www.P65Warnings.ca.gov
Warranty Information
View AllCloseAdditional Information
Box Qty: |
2000 |
Diameter: |
#12 |
Length: |
1-1/4" |
Material: |
Quik Guard® Coating |
