CONFAST®

5/16" Double Expansion Anchor, 50/Box

(No reviews yet) Write a Review
SKU:
DE516
UPC:
820274000359
Availability:
In Stock, Ships Today!
$30.50
Frequently bought together:

Description

Products Features
  • CORROSION RESISTANT​ ​BODY:  Anchor body can be used in atmospheres where moisture may be present
  • EXPANDS THE WHOLE LENGTH OF ANCHOR:  Performs well in base material of questionable strength
  • INTERNAL THREADS:  Allows for unbolting​ ​for non-permanent fastening applications
  • NATIONAL COARSE THREADS:  Bolts that are required are the most common type available and easily found for purchase
  • EACH DIAMETER COMES IN ONE LENGTH:  Selection is simple process of picking a diameter and then choosing the anchor
Products specifications
Bit Size 5/8"
Box Qty 50
Minimum Embedment 1-1/2"
Thread Type 5/16" - 18
Minimum Edge Distance 3-1/8"
Minimum Fixture Hole Diameter (In Place) 3/4"
Minimum Fixture Hole Diameter (Hole Spotted) 5/16"
Inside Anchor Diameter-Bolt Diameter 5/16"
Outside Anchor Diameter 5/8"
Brand Name CONFAST®
Maximum Torque 7 ft./lbs.
Bolt Length Fixture Thickness + Embedment Depth
2000 PSI Concrete - Pull-Out (lbs.) * 847
Length Measurement End to End
Diameter 5/16"
Length 1-1/2"
Material Zamac
Environment Moist
Type Female
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Installation Video
Installing a 5/16" Double Expansion Anchor
  1. Drill a 5/8" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. The depth of the hole can be deeper or equal to the minimum embedment depth of 1-1/2" which is equal to the length of the anchor .
  3. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  4. Insert the anchor with its threaded end first into the hole.
  5. Place the fixture over the 5/16" Double Expansion Anchor, insert a 5/16" diameter bolt through the fixture and into the 5/16" Double Expansion Anchor.
  6. Use a wrench to turn the anchor clockwise until tight or maximum torque value 7 ft. lbs. is reached.
  7. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Application Photos

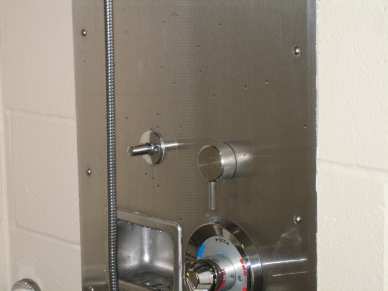

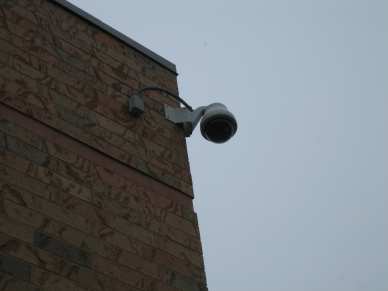

5/16" double expansion anchor - brick - safety camera 5/16" double expansion anchor - block - shower valve
View AllClose

Additional Information

Bit Size:
5/8"
Minimum Embedment:
1-1/2"
Thread Type:
5/16" - 18
Material:
Zamac
Environment:
Moist
2000 PSI Concrete - Pull-Out (lbs.) *:
847
Type:
Female
Diameter:
5/16"
Length:
1-1/2"
Box Qty:
50
Minimum Edge Distance:
3-1/8"
Minimum Fixture Hole Diameter (In Place):
3/4"
Minimum Fixture Hole Diameter (Hole Spotted):
5/16"
Inside Anchor Diameter-Bolt Diameter:
5/16"
Outside Anchor Diameter:
5/8"
Length Measurement:
End to End
Bolt Length:
Fixture Thickness + Embedment Depth
Brand Name:
CONFAST
