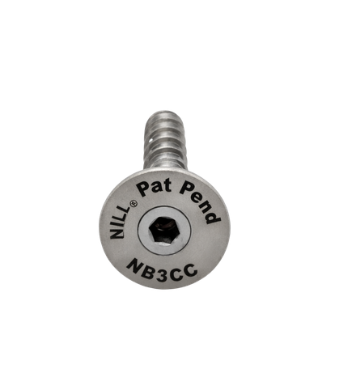

The NB3CC features an “internal waterproof threaded port,” allowing for easy bolt-on attachments. This streamlined process & caulk groove provides waterproofing capabilities, superior strength, and faster, more cost-effective installations.

Description:

• Patent Pending
• 304 Stainless Steel
• Flange: 1 ½” Diameter x 1/16” Thick
• ¼”-20 X 1” Deep Internal Threaded Port
• Concrete Lag ½” x 3" long

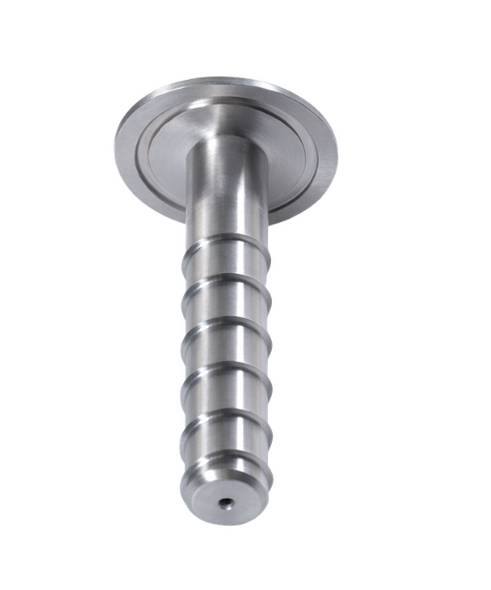

• Caulk Groove on Underside of Flange for Sealing
• 5/16” Allen Key Insert for Easy Installation
• All Items Can Be Made In 316 Stainless Upon Request

Product Specifications:

Lag Diameter: 1/2” (outside diameter of lag)

Lag Length: 3” (under flange to end of lag)

Flange Diameter:  1 ½” (outside diameter of the flange)

Flange thickness: 1/16”  (overall thickness of flange)

Internal threaded port size: ¼”- 20

Internal threaded port depth: 1”

Full product specs and design values: NB3CC

Installation Instructions:

Substrate Requirements

• The NB3CC fastener must be installed into a solid substrate that meets the project engineer’s specifications.
•  Approved substrate: Concrete

____________________________________________________________________________

Layout & Predrilling

• Mark out NB3CC fasteners to the desired attachment locations on the already waterproofed or membraned surface.
•  Predrill marked locations using: ½” x 3.25” long drill bit.

• Hole cleaning: Insert the nozzle of an air compressor or air pump to the bottom of the hole and blow out debris. Repeat twice.

__________________________________________________________________________

Waterproofing-Sealing

• Apply sealant in and around predrilled hole according to roofing manufactures compatibility guidelines

____________________________________________________________________________

Installation & Attachment

• Drive the NB3CC into the predrilled hole using a 5/16” allen key bit until the flange compresses directly on the waterproofed or membraned surface creating a gasket seal.
• Bolt the attachment into the internal threaded port on the NB3CC with ¼”-20 bolt using a hand tool only
• Ensure bolt is fully seated in the port without bottoming out

• Do not use power tools for final tightening of attachment.

For full installation details, engineering data, and updated specifications click here:  NB3CC: Concrete Fastener

Product video: NB3CC- Concrete Fastener
